• Review: The all-new 2013 Ford C-Max Hybrid does a lot with a little

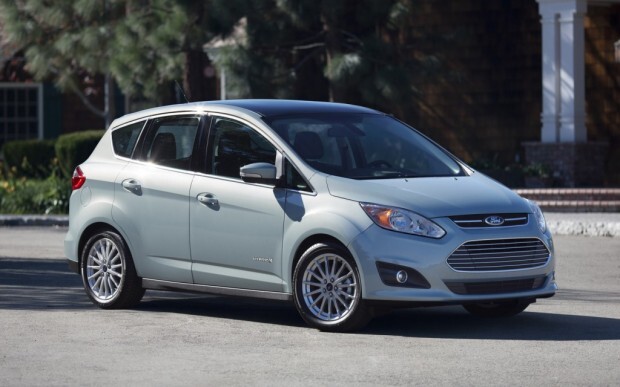

    2013-Ford-C-Max-Hybrid-front-three-quarter1-1024x640The all-new 2013 Ford C-Max Hybrid is designed to outgun the popular Prius V model, which is the largest Prius hybrid model. That’s a big job because the Prius is the darling in its various forms of the hybrid-car crowd.

    However, the front-drive C-Max appears to be a fairly well proven vehicle in that Ford says more than 100,000 have been sold in Europe since it was launched in late 2010.

    The Prius V is rather boring to drive, but the five-passenger C-Max is based on the sporty Ford Focus, which Ford proclaims was the world’s top-selling passenger car in 2012.

    Ford calls the C-Max Hybrid “the right car for the time as it combines the dynamics and quality of a traditional car with the versatility” of a MAV.” (One assumes Ford means “Multi-Activity Vehicle.) Some call the C-Max a compact wagon, but what’s in a name in today’s auto world? The key word here is “hybrid.”

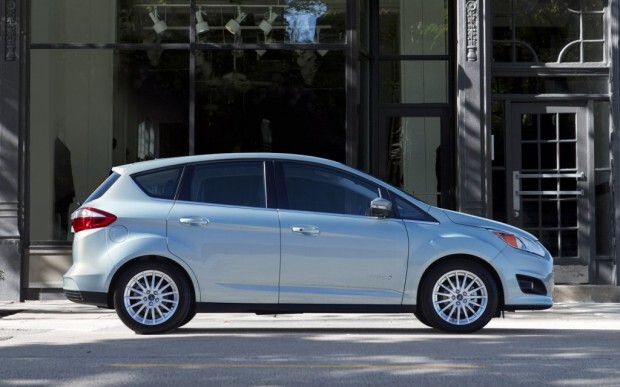

    2013-Ford-C-Max-Hybrid-profile1-1024x640Using the Focus architecture is a definite plus. The Focus underpinnings allow sporty handling, although the C-Max felt somewhat ponderous when pushed hard through curves because it weighs a hefty 3,640 pounds.

    My test C-Max Hybrid had quick, but rather stiff, power steering. The ride was supple, and four-wheel disc brakes provided short stopping distances, activated by a firm brake pedal.

    The C-Max is wider and taller than the Prius, which makes it slightly roomier for occupants, although the Prius V is longer and has a larger cargo hold. Still, the C-Max cargo area is large, and split fold-down rear seatbacks sit flat to enlarge it.

    Neither the C-Max or Prius V four-door hatchback models will win beauty contests. The Prius V looks much like an appliance. At first, the 104.3-inch wheelbase C-Max looked too big and somewhat bulky to be a decent hybrid. But its functional appearance began to grow on me after awhile, although its low front end could be easily damaged.

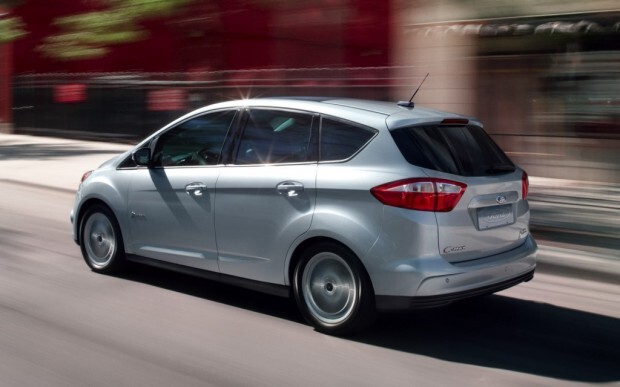

    2013-Ford-C-Max-Hybrid-rear-three-quarter1-1024x640The C-Max delivers an EPA-estimated 47 miles per gallon both in the city and on highways, outdoing the Prius V a bit. However, the C-Max I tested only got 34 miles per gallon during a mix of brisk city and highway motoring. It likely would have done better if driven moderately for a longer time period.

    List prices for the C-Max range from approximately $25,200 to $32,950. There’s also a plug-in C-Max hybrid version called the Energi, which is Ford’s first plug-in hybrid. No Energi was available for driving.

    Ford says the C-Max Hybrid has a driving range of 570 miles with its 13.5-gallon tank of regular fuel. (The Energi’s range is an estimated 620 miles.) The C-Max is said to be able to do 62 m.p.h. in electric-only mode.

    Beneath the hood of the C-Max Hybrid is a new 2-liter Atkinson-cycle four-cylinder engine with dual overhead camshats, four valves per cylinder and intake variable camshaft timing. The result is 141 horsepower. The engine is seamlessly teamed with a 118-horsepower electric motor and small lithium-ion battery pack—resulting in a peak total of 188 horsepower. (You don’t add the two numbers with this hybrid to get a total horsepower figure.)

    The electric motor and gas engine seamlessly work together or separately to maximize efficiency. The engine also can operate independently of vehicle speed, charging the batteries or providing power to the wheels, as needed. The motor alone can provide sufficient power to the wheels in low-speed, low-load conditions—and work with the engine at higher speeds.

    In the C-Max Hybrid, the battery pack is recharged when the gas engine is operating. Also, the car’s regenerative braking system recaptures more than 95 percent of the braking energy that otherwise would be lost, and it can use that power to help charge the battery. The C-Max Hybrid needs no plug-in charging.

    An efficient continuously variable automatic transmission transfers power.

    The 0-60 mph time of the 115-m.ph.h. C-Max is 8.1 seconds. Quick 65-75 m.p.h. passing is no problem. The engine drones under heavy acceleration, but not annoyingly so.

    I tested the $28,200 SEL version of the C-Max Hybrid. Its features include dual-zone automatic climate control, a power leather-trimmed driver’s seat, speed control and remote power windows and locks with keyless entry.

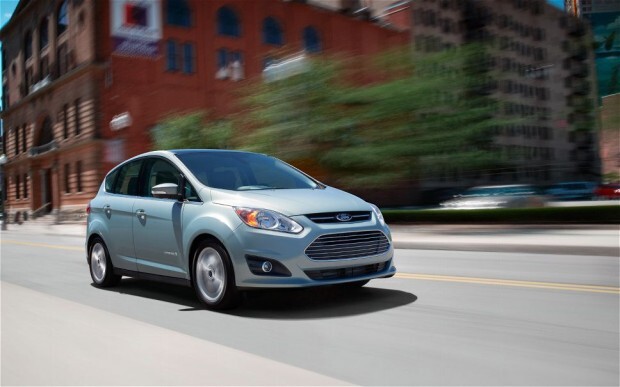

    2013-Ford-C-Max-Hybrid-front-right-viewThere are plenty of safety features, including a bunch of air bags, side curtains and traction control with roll stability control, besides a reverse sensing system.

    Options include a rearview camera and power tailgate that opens after a gentle kicking motion under the rear bumper when used with a key fob. The same motion can be used to close the tailgate.

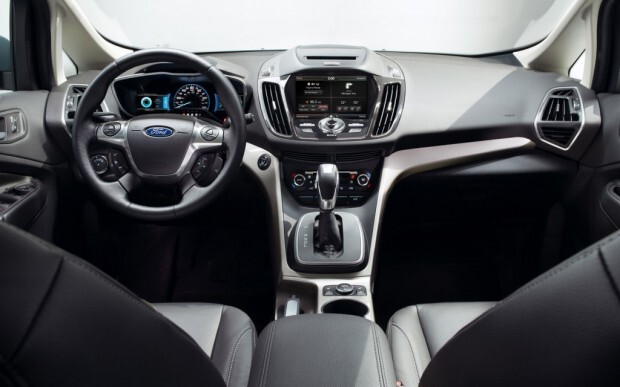

    The C-Max has supportive seats and easily read backlit gauges. Controls don’t take long to figure out. There are a good number of storage areas and nicely placed front cupholders. But a cheap plastic strap holds the glovebox door open. If Ford wants to cut costs, it should do that in less visible places.

    A higher, command-style front seating position provides a good view of the road through a giant windshield. Large, folding outside mirrors help rear vision.

    The quiet interior is roomy, both front and rear, although the center of the backseat is stiff and best left to the center armrest, which contains cupholders. Rear-door openings are narrow.

    The low, wide cargo opening and a large tailgate that raises on struts facilitates quick loading or unloading during a rush at, say, airport departure areas.

    The heavy hood needs a prop rod, not hydraulic hinges, to hold it open. But the engine compartment of this nicely assembled car is surgically neat.

    The C-Max Hybrid is off to a good start, with 3,769 units sold here during the first three months of 2013. Toyota has a long head start over Ford with its Prius hybrid models, but it must be looking over its shoulder at the C-Max.

    Prices: $25,200-$32,950

    2013-Ford-C-Max-Hybrid-interior-21-1024x640On the TFLcar scale of:

    Buy it

    – Lease it

    – Rent it or

    -Forget it

    I recommend that you Buy It!

    Dan Dan Jedlicka joined the Chicago Sun-Times in February 1968 as a business news reporter and was named auto editor later that year. He has reviewed more than 4,000 new vehicles for the Sun-Times–far more than any newspaper auto writer in the country. Jedlicka also reviewed vehicles for Microsoft Corp.’s MSN Autos Internet site from January, 1996, to June, 2008. For more of Dan’s thoughtful and insightful reviews please visit his web site HERE.

    Dan Jedlicka
    Dan Jedlicka
    Dan Jedlicka joined the Chicago Sun-Times in February 1968 as a business news reporter and was named auto editor later that year. He has reviewed more than 4,000 new vehicles for the Sun-Times–far more than any newspaper auto writer in the country. Jedlicka also reviewed vehicles for Microsoft Corp.’s MSN Autos Internet site from January 1996 to June 2008.For more of Dan’s thoughtful and insightful reviews please visit his website, www.danjedlicka.com.
    http://www.danjedlicka.com

    Similar Articles

    4 thoughts on “Review: The all-new 2013 Ford C-Max Hybrid does a lot with a little

    1. Open letter to Ford:
      I thought my 2013 C-MAX would be a Prius Killer? NOT! As a returning Ford buyer I feel deceived. I want to support US companies and US jobs. What was Ford thinking when they published 47/ 47/47 estimates? Based on the advertised EPA estimates, I would have been ok with low 40’s but 28-33 mpg is not even in the ballpark. This is not an issue about EPA testing standards, but rather an issue about setting false customer expectations in order to promote sales. Ford’s “47MPG” marketing campaign tarnished what should have been the roll out of a truly remarkable vehicle, the CMAX. Real world MPG estimates should have been promoted in the mid-30’s. No one would have questioned those numbers and the CMAX would have received the accolades it deserves. How these MPG estimates made it through Ford corporate is beyond me! Maybe it was the rush to go to market?

      I have been accused of not knowing how to drive hybrid. For the record, during the last three years I have leased both a 2010 Prius and 2010 Honda Insight Hybrid, and consider myself an experienced hyper-miler. My mileage in the Prius is 50 plus, the Insight is 40 plus. The C-MAX is a well-built car, with extremely inflated EPA estimates.

      I respectfully request that this matter be investigated as soon as possible. My efforts to deal with this locally and through Ford customer service have frustrated me to no end. The constant response? “You need to learn to how to drive hybrid type of vehicle “. Is there a difference how I drive Prius Hybrid vs. the CMAX hybrid? I think we all know the answer to that. I need someone at Ford to reach out to me and assist in a proactive manner so we can put this matter to rest. I have opted not to join the class action lawsuit regarding this matter in order to explore my resolution options with Ford directly feeling this was the most honest approach to the matter. Can I expect the same from Ford in return?

      Respectfully submitted,

      Ronald Kramer
      Yankee Ford Customer
      South Portland, Maine

      PO Box 2517
      South Portland, ME 04116

    2. I’m 1,700 miles into my C-Max Hybrid SE and since around 1,450, I’ve been averaging 49 MPG (was 40 at first but slowly crept up). Highest so far – 63 MPG over 22 miles stop/start. Lifetime average now 42.8 MPG.
      Advice – enable ECO cruise and use it as often as you can; brake early; set up a few EV+ locations (turn the car off and on a few times and it’ll remember the location as an EV+ location). Pulse and glide works, but is a pain (Google it) and if you’re in a cold climate, a grille cover will give you a few MPG back, but then you lose the look of the faux Aston Martin grille C-Max has.
      Only thing I don’t like – MFT suuucks and the so does the turning circle.

    3. The Ford C-Max wasn’t yet around when I bought my Prius V in November, 2011. The C-Max reported mpg returns are wide ranging. My V’s overall average is almost 47 mpg and I have had a few tanks over 50mpg (highest was 53). This is actual tank-to-tank mpg, NOT the car meter reading. I am on Fuel Economy.gov, the Prius V from OH.
      Yes the V could use more isolation from road noise and the center cluster isn’t for everyone. Styling is subjective, I kinda like the V’s look, a bit less “giant insect” like. It has sufficient power (especially when not in ECO mode) and even seems fast in POWER mode. Seeing all the reported mpg readings for the C Max and V, it seems the two vehicles are comparable in mpg when driven conservatively and this item should not be a major buying decision.
      The V’s cargo area is size L and without the “step” seen in the C Max, but the C Max certainly has a lot of positive appointments to recommend it. Ford has done a good job with their interiors and their hybrid system. I hope Mr. Kramer will experience better mileage as his ownership goes on.
